GB Electrical

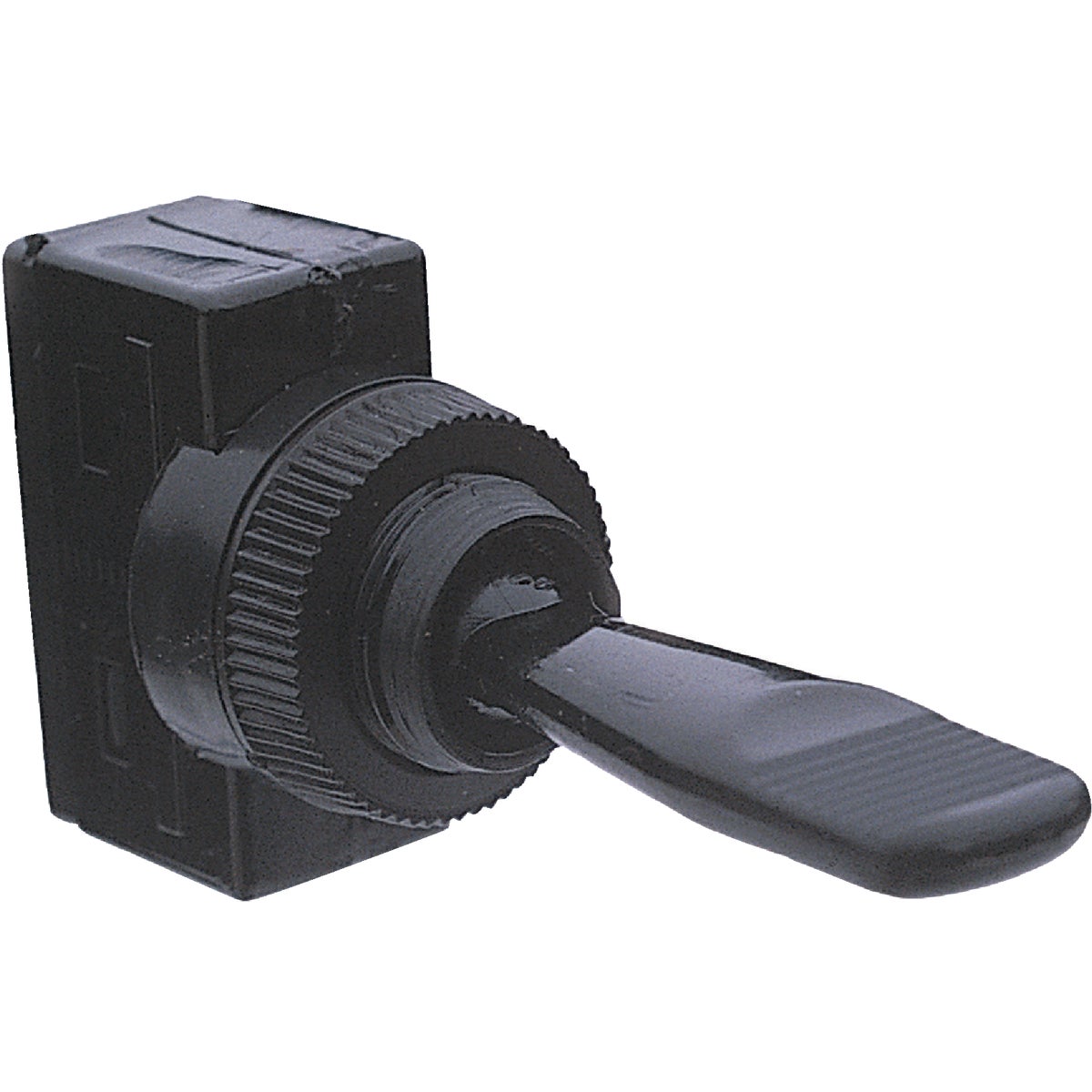

Duck bill toggle switch with wide flat lever actuator. 3-way switch on/off/on toggle. Terminals measure 0.250-inch. Male blade terminals/wire leads. Mounts into 1/2-inch diameter hole. Black. 12V DC/20A. No. 40120: Switch Type: Duck Bill Terminal Type: Male Blade Amperage: 20 Power Rating: 12V Pkg Qty: 1 Package Type: Card

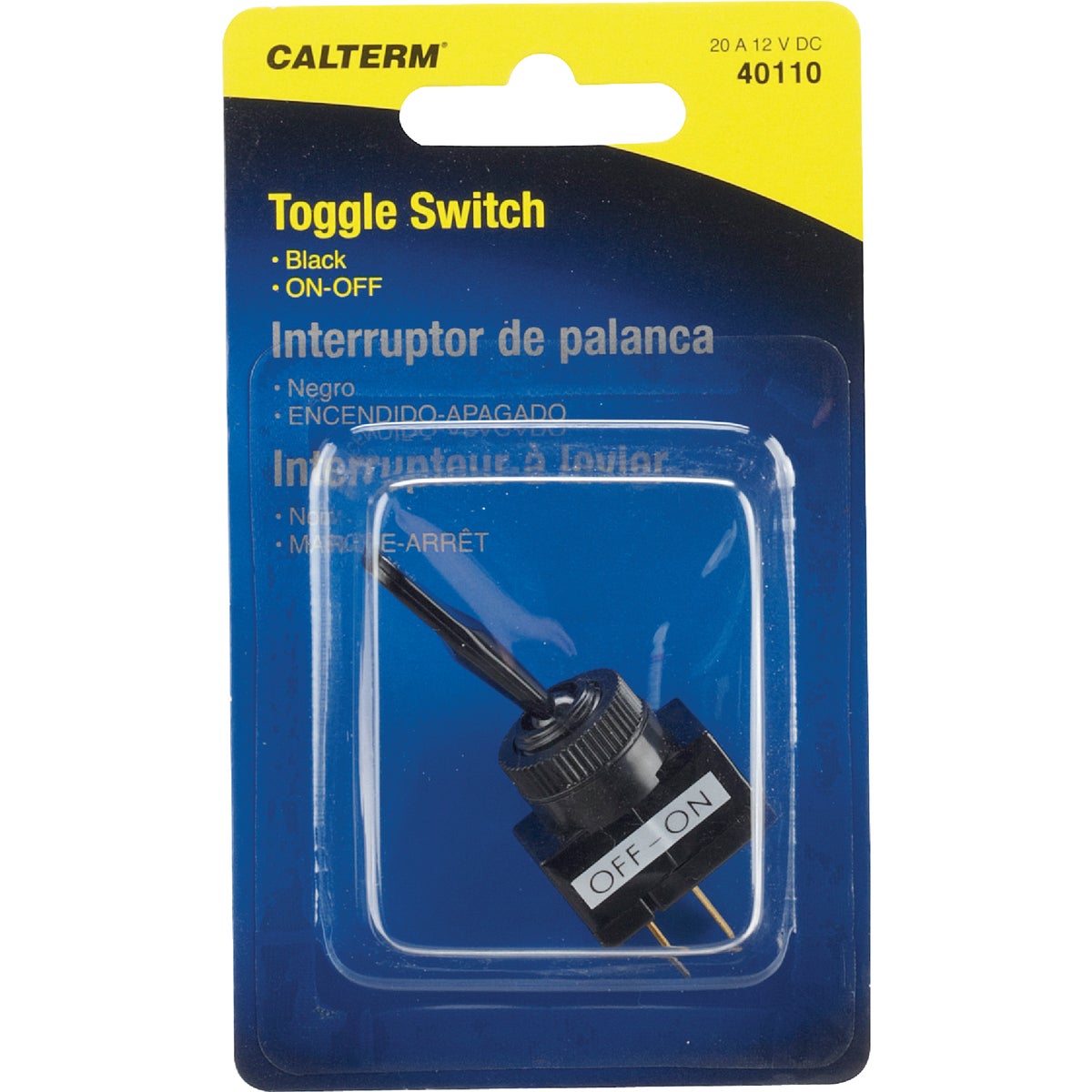

Duck bill toggle switch with wide flat lever actuator. on/off toggle. Terminals measure 0.250-inch. Male blade terminals/wire leads. Mounts into 1/2-inch diameter hole. Black. 12V DC/20A. No. 40110: Switch Type: Duck Bill Terminal Type: Male Blade Amperage: 20 Power Rating: 12V Pkg Qty: 1 Package Type: Card

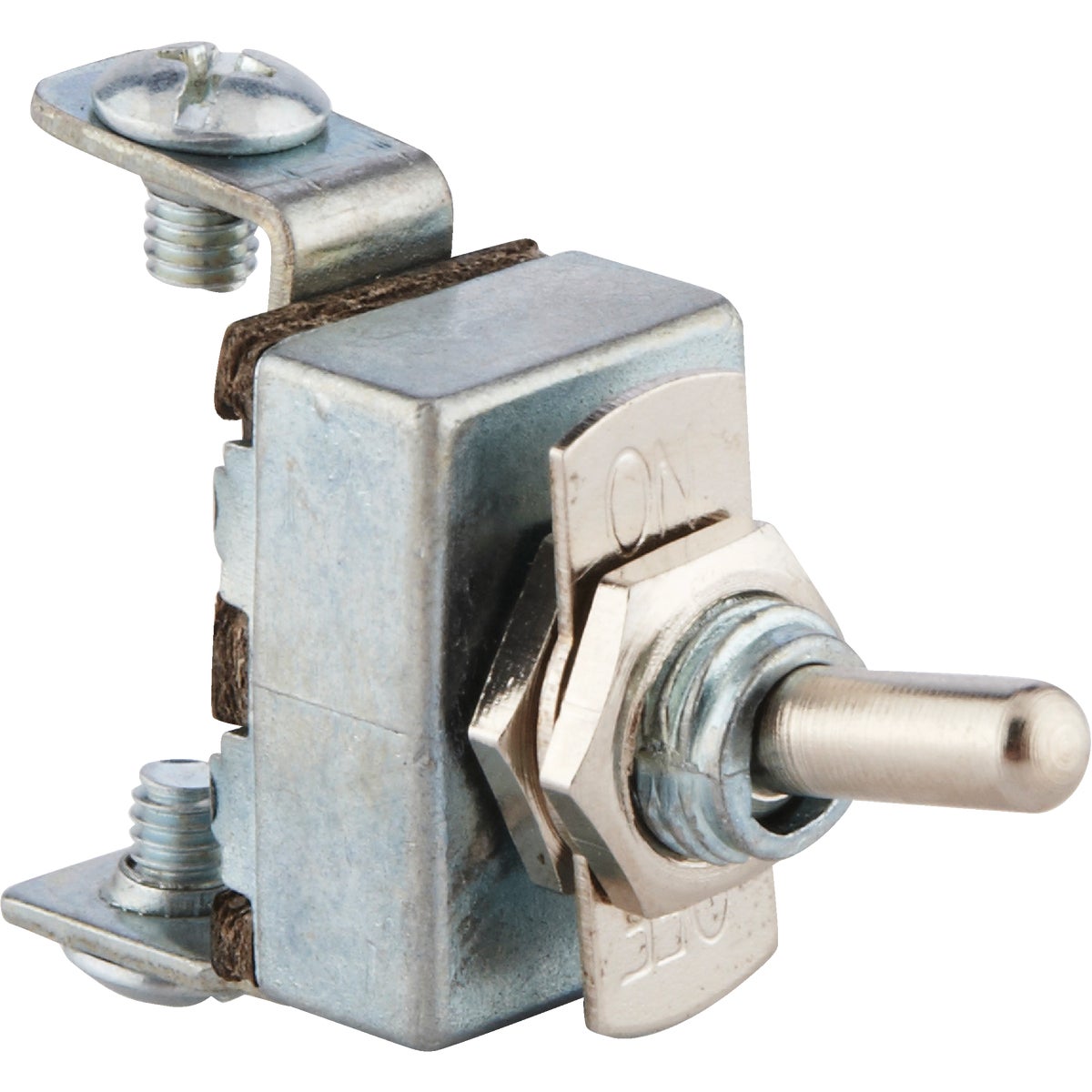

Lever operator 2-position on/off toggle switch. Terminals measure 0.250-inch. Screw terminal. Nickel color. 12V DC/15A. No. 41700: Switch Type: Lever Terminal Type: Screw Amperage: 15 Power Rating: 12V Pkg Qty: 1 Package Type: Card

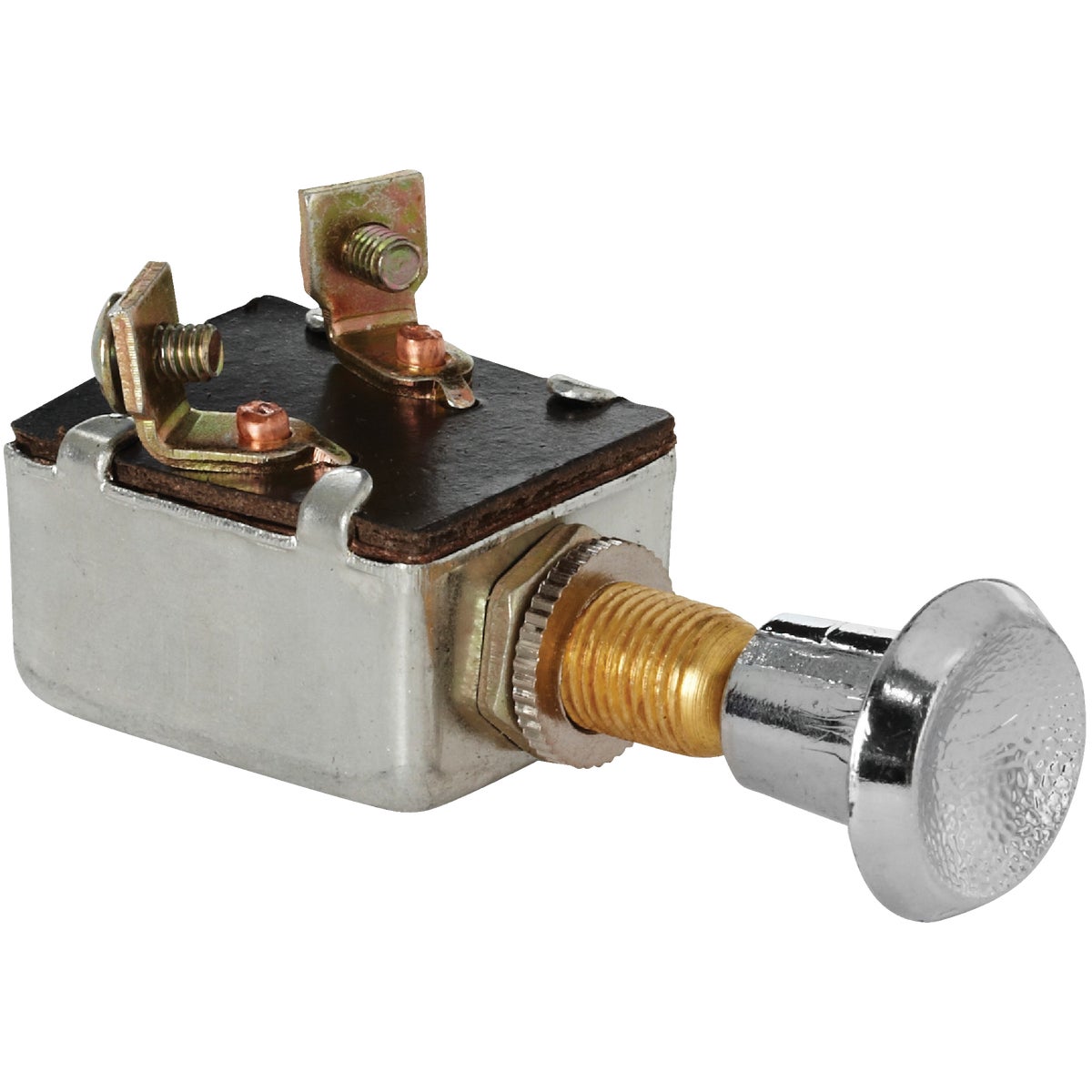

General-duty. Use where the ability to push or pull a knob to operate the switch is desired. Chrome finish knob. 2-position On/Off. Mounts in a 7/16" hole. Screw terminals to attach wiring. 12V DC/15A. No. 42200: Voltage: 12 Amperage: 15 Grade: General Mounting Hole Size: 7/16 In. Knob Finish: Chrome Pkg Qty: 1 Package Type: Card

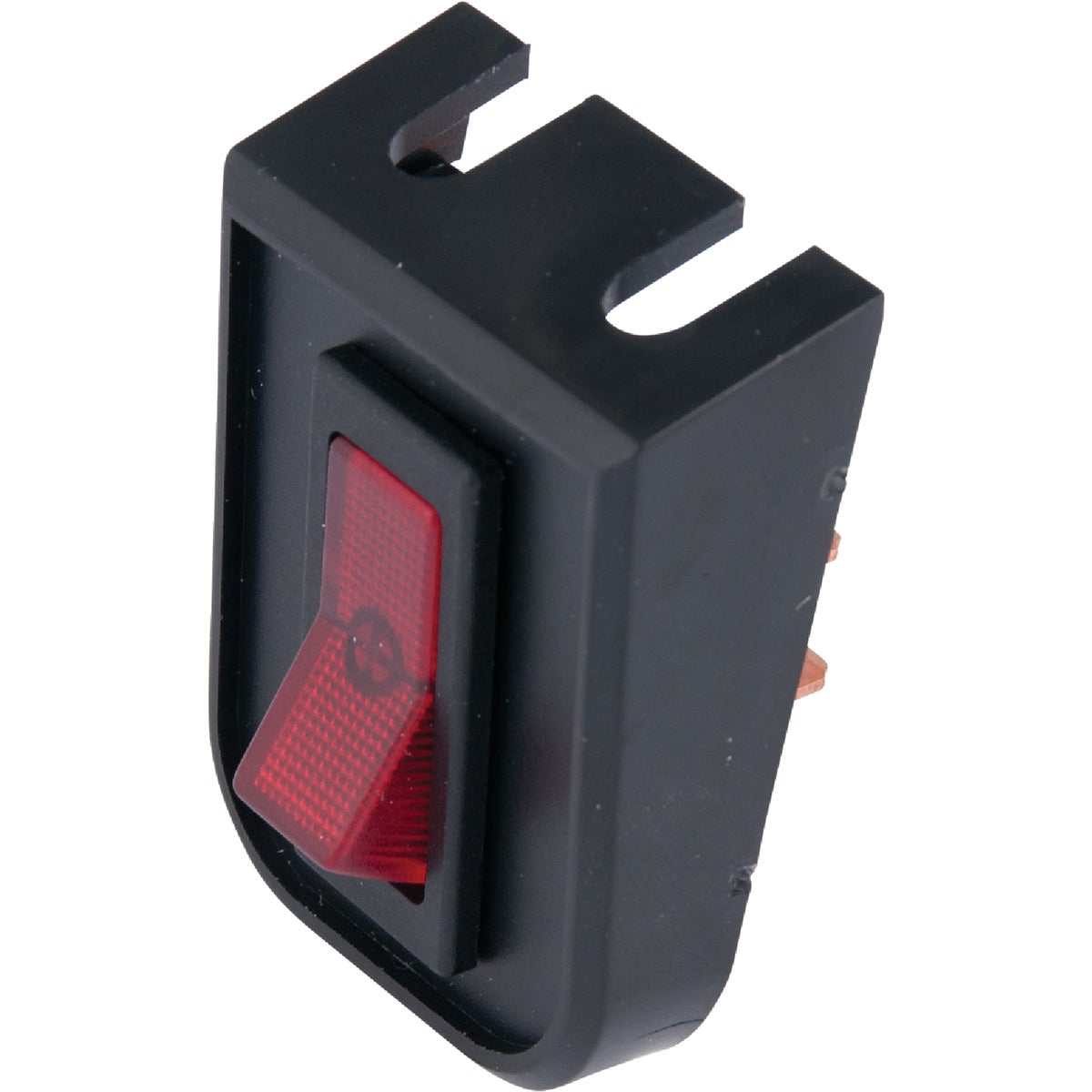

Combines the functions of an indicator and a switch into 1 product. Incandescent non-replaceable bulb with colored lens. Terminal measures 0.250 In. Additional panels can be mounted together with clip provided. Male blade terminal/wire leads. 12V DC/20A. Red. No. 41310: Switch Type: Illuminated Amperage: 20 Voltage: 12 Color: Black Body/Red Rocker Certification: UL Listed Pkg Qty: 1 Package Type: Card

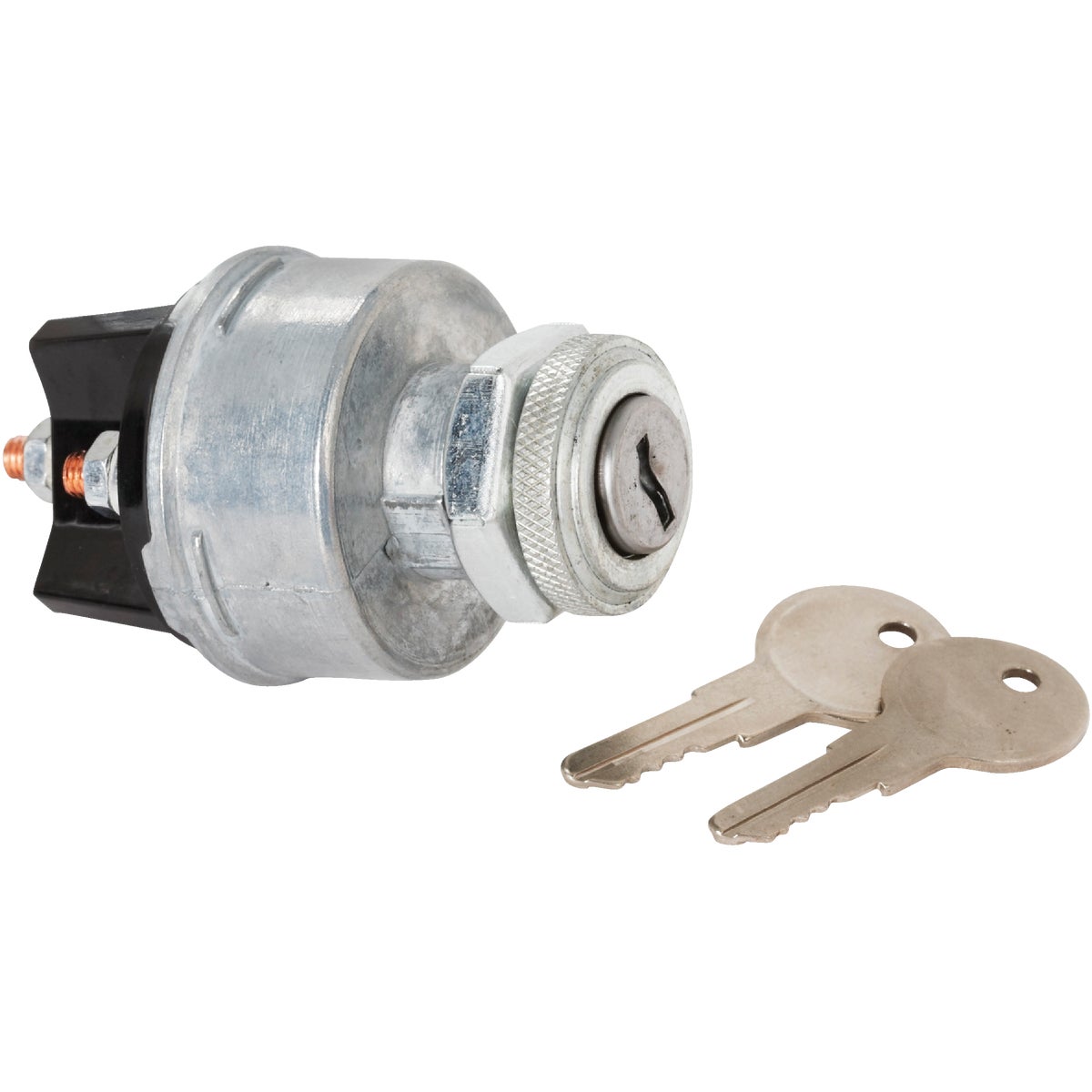

Universal starter key switch with 4-positions (accessory Off ignition start). Starter switch allows key removal in Off position. Key operated includes 2 keys. 4 copper stud mounting nuts. Nickel color. 12V DC/30A. No. 42410: Type: 4-Position Voltage: 12 Amperage: 30 Mount Type: 4 Copper Stud Mounting Material: Copper Color: Nickel Pkg Qty: 1 Package Type: Card

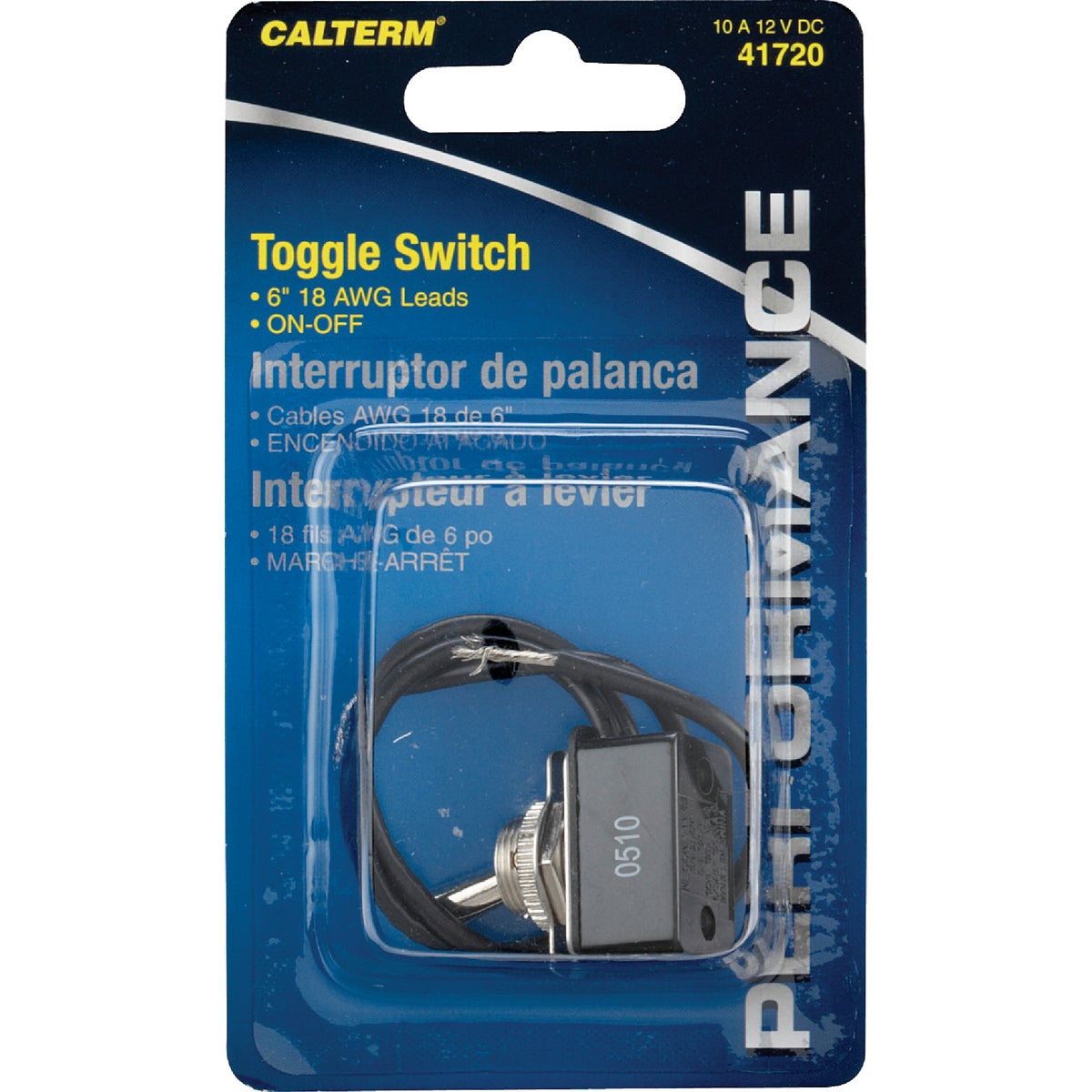

Pre-wired metal toggle switch. Lever operator. 2-position on/off. Nickel finish. Fits 1/2-inch hole. Attach with wire ends. 12V DC/10A. No. 41720: Switch Type: Pre-Wired Metal Terminal Type: Wire Ends Amperage: 10 Power Rating: 12V Pkg Qty: 1 Package Type: Card

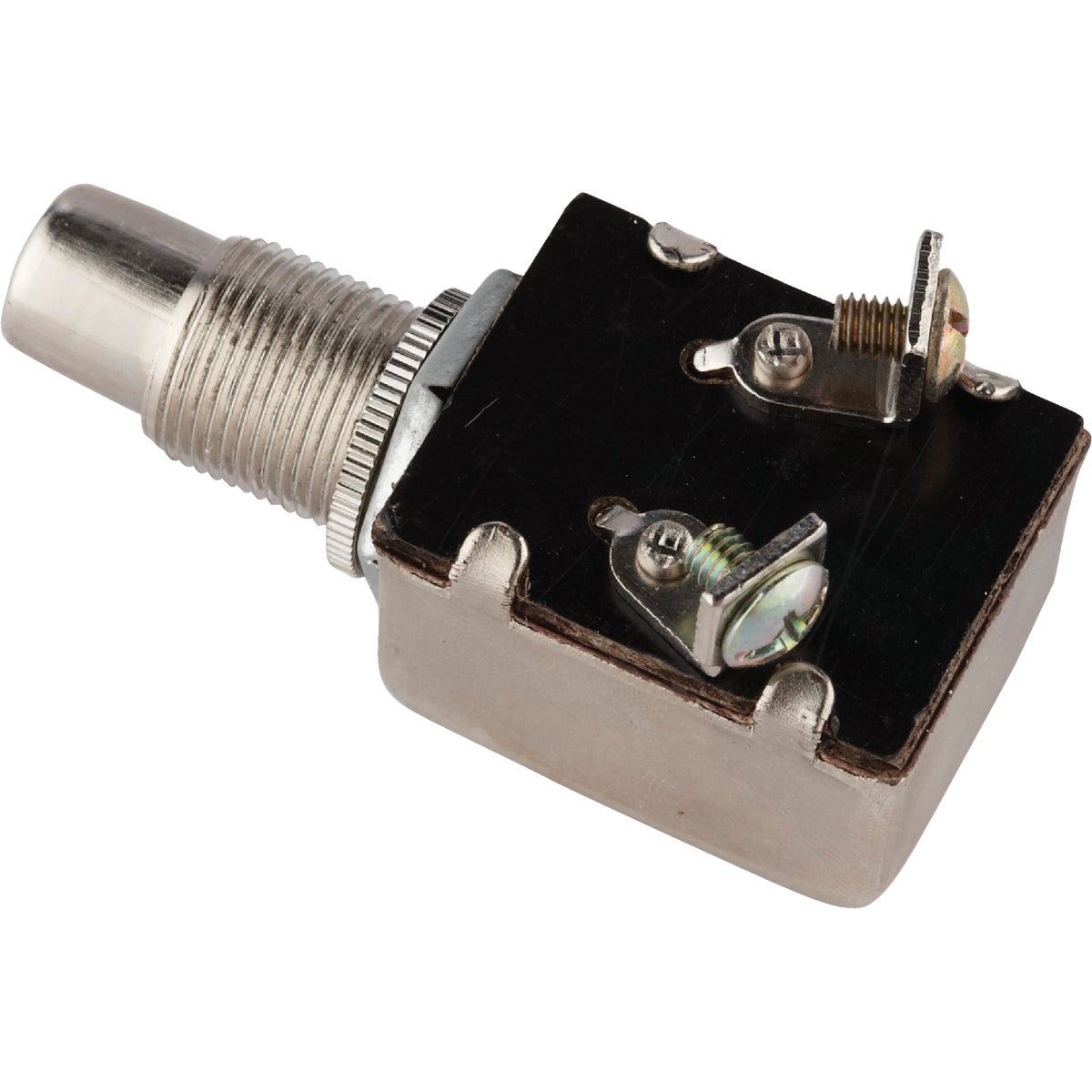

For applications where the switch is On (momentary On ) only when the bottom is depressed maintained Off . Mounts in 5/8" hole. Screw terminals. Brass with chrome plating. 12V DC/15A. No. 42210: Voltage: 12 Amperage: 15 Material: Brass Terminal Type: Screw Mounting Hole Size: 5/8 In. Finish: Chrome Plating Pkg Qty: 1 Package Type: Card

8-1/2" multi-tool stripper cutter and crimper strips copper and aluminum wire solid or stranded and cuts and rethreads bolt sizes 4-40 5-40 6-32 8-32 10-24 and 10-32. Pliers nose for pulling and looping wire crimps insulated and noninsulated terminals. Crimps coaxial F connectors. Features curved cutting blade and comfort high-leverage handles. Precision ground-stripping stations prevent nicking conductor while stripping. No. GS-370: Length (In.): 8 Wire Capacity: 10 AWG to 20 AWG Material:...

Cable staple ideal for use with all 2-wire UF non-metallic and BX cable. 1/2-inch unbreakable clear poly construction will not bruise wires. No. PS-50: Saddle Size (In.): 0.5 Length (In.): 0.375 Insulated: Yes Material: Metal & Plastic Finish: Zinc-Plated For Use With: Non-Metallic Cable Pkg Qty: 50 Package Type: Bag No. PS-150Z: Saddle Size (In.): 0.5 Length (In.): 0.375 Insulated: Yes Material: Metal & Plastic Finish: Zinc-Plated For Use With: Non-Metallic Cable Pkg Qty: 100 Package Type:...

Cable staple ideal for use with all 2-wire UF non-metallic and BX cable. 1/2-inch unbreakable clear poly construction will not bruise wires. No. PS-50: Saddle Size (In.): 0.5 Length (In.): 0.375 Insulated: Yes Material: Metal & Plastic Finish: Zinc-Plated For Use With: Non-Metallic Cable Pkg Qty: 50 Package Type: Bag No. PS-150Z: Saddle Size (In.): 0.5 Length (In.): 0.375 Insulated: Yes Material: Metal & Plastic Finish: Zinc-Plated For Use With: Non-Metallic Cable Pkg Qty: 100 Package Type:...

Coaxial cable staple ideal for use with RG58 RG59 and RG6 cables. Features clip-on cable holding design for easy installation. UV-resistant polyethylene saddle and zinc-plated nails for extended life. The smooth saddle holds coaxial cable securely while preventing damage. No. PSB-1650T: Saddle Size (In.): 0.25 Material: UV-Resistant Polyethylene Finish: Zinc-Plated For Use With: RG-6 & RG-59 Coaxial Cable Pkg Qty: 25 Package Type: Card

Kit contains the most popular sizes of insulated ring spade and butt terminals as well as Male and Female disconnects. Comes in a re-useable see-through plastic storage container. No. TK-175: Wire Size: Assorted Wire Size Pieces in Kit: 175 Pkg Qty: 1 Package Type: Card

Reversible tip combines 2 tools into 1. Molded shaft insulation tested to 1000V provides secondary protection against accidental electrical shock. Ergonomic grip is engineered for maximum torque with minimum effort. Reverse from No. 2 Phillips to 3/16" slotted. No. SCE-3260: Type: Phillips Slotted Bit Retainer Type: Quick Change Pieces In Set: 1 Length: 7-1/2 In. Handle Material: Plastic Individual/Set: Individual Pkg Qty: 1 Package Type: Clamshell

Gardner Bender 2-Piece Electrical Tester Kit

Insulated screwdriver set. Insulated to 1000 volts. Heat treated to reduce chipping and slipping. Features comfortable high leverage grip and high torque ergonomic handle. Set includes (1) 3/16 flat and (1) #2 Phillips screwdriver. No. SCE-3262: Pieces In Set: 2 Individual/Set: Set Pkg Qty: 2 Package Type: Clamshell

2-speed easy pull switch for ceiling fans. Off/On/On. 3 stab-type wiring slots for 18-gauge soldered stranded wire or solid wire for ceiling fans. 72 In. white cotton pull cord to attach to the switch pull chain included. 3A/250V AC; 6A/125V AC. UL (Underwriter's Laboratories) listed. No. GSW-33: Switch Function: SPST Lead Length (In.): 6 Cord Length (Ft.): 6 Certification: UL Listed Pkg Qty: 1 Package Type: Card

Momentary on normally off. Button in-on button out-off for door bells buzzers lamps security systems horns and lighting etc. 2 screw-type terminals. 3A/240V AC; 6A/120V AC. UL (Underwriter's Laboratories) listed. No. GSW-22: Switch Function: Momentary Off Normally On Finish: Black Voltage: 120 AC/240 AC Amperage: 6/3 Terminal Type: 2 Screw-Type Certification: UL Listed Pkg Qty: 1 Package Type: Card

28-piece dependable high quality terminal kit. Includes: (10) ring terminals (4) spade terminals (5) disconnect f (5) disconnect m and (4) butt splices. Rated to 600-volt maximum. 12-10 AWG. No. TK-1210: Wire Size: 12 to 10 AWG Pieces in Kit: 28 Pkg Qty: 1 Package Type: Card

When you're ready to add a multi-meter to your toolbox this unit is a great place to start. This tester is designed to work on most household appliances and is equipped with an easy-to-read 3.5 inch digital display and three testing functions: AC Voltage to 500V DC Voltage to 600V and Resistance to 2 meg Ohms. The 14 position manual ranging smooth rotary dial helps achieve precise and accurate readings and the low battery indicator gives a warning when the batteries need to be replaced. The...

Multi-speed easy pull switch for ceiling fans. 4 stab-type wiring slots for 18-gauge soldered stranded wire or solid wire for ceiling fans. 1.5A/250V ACL; 3A/250V AC and 6A/125V AC. UL (Underwriter's Laboratories) listed. 3-speed Off/On/On/On. No. GSW-34: Switch Function: SPST Lead Length (In.): 6 Certification: UL Listed Pkg Qty: 1 Package Type: Card

Heavy-duty 3-way voltage tester tests AC/DC Voltage at 120 240 and 277V. Individual indicators for each voltage range assures reliability. 24-inch test lead is long enough for convenient testing. Unit is both durable and compact. Testing applications include outlets panels light fixtures switches circuit breakers and more. No. GET-3213: Type: Contact Twin Lead Voltage: 480 AC/110 DC Lead Length (In.): 24 Certification: ETL Listed Pkg Qty: 1 Package Type: Clamshell

Cable staple ideal for use with 3-wire UF non-metallic and BX cable. 3/4-inch unbreakable clear poly construction. No. PS-75: Saddle Size (In.): 0.75 Length (In.): 0.375 Insulated: Yes Material: Poly Finish: Zinc-Plated Pkg Qty: 50 Package Type: Bag No. PS-175ZN: Saddle Size (In.): 0.75 Length (In.): 0.375 Insulated: Yes Material: Poly Pkg Qty: 100 Package Type: Bag

Cable staple ideal for use with 3-wire UF non-metallic and BX cable. 3/4-inch unbreakable clear poly construction. No. PS-75: Saddle Size (In.): 0.75 Length (In.): 0.375 Insulated: Yes Material: Poly Finish: Zinc-Plated Pkg Qty: 50 Package Type: Bag No. PS-175ZN: Saddle Size (In.): 0.75 Length (In.): 0.375 Insulated: Yes Material: Poly Pkg Qty: 100 Package Type: Bag
