Prime Line Prod.

Plastic backplate can be inverted for self-adjusting application. For use on rolled edge track and most other center mount tracks. Secures drawer track to back of cabinet. No. R 7133: Width (In.): 3/4 In. Height (In.): 5/8 In. Socket Width (In.): 7/16 In. Socket Length (In.): 2-3/4 In. Rail Mount: Center Material: Nylon Color: Purple Pkg Qty: 2 Package Type: Card

White polyethylene guide and white polyethylene side saddles; restores smooth operation of track mounted drawers. Fits a 1/4" x 1-1/16" track. Contents: 1 guide 2 side saddles and 1 set of installation fasteners. No. R 7224: Track Size: 9/32 In. x 1-1/8 In. Width: 2-7/16 In. Material: Polyethylene Color: White Pkg Qty: 2 Package Type: Card

Prime-Line Drawer Track Guide Kit

Prime-Line Drive-In Ball Bullet Catch and Strike

Prime-Line Drive-In Ball Bullet Catch and Strike

Prime-Line Fix-A-Latch Strike Plate Repair Kit

This center grooved sliding screen door tension roller is used by many patio door manufacturers. Used on the bottom as well as the top of the sliding screen door. The roller is a grooved high density polyethlene roller. The tension spring is 2-1/2 inches long & is a heat treated high tension steel spring. No. B 521: Roller Diameter: 1 In. Material: Nylon Roller Width: 1/4 In. Spring Type: Straight Pkg Qty: 2 Package Type: Card

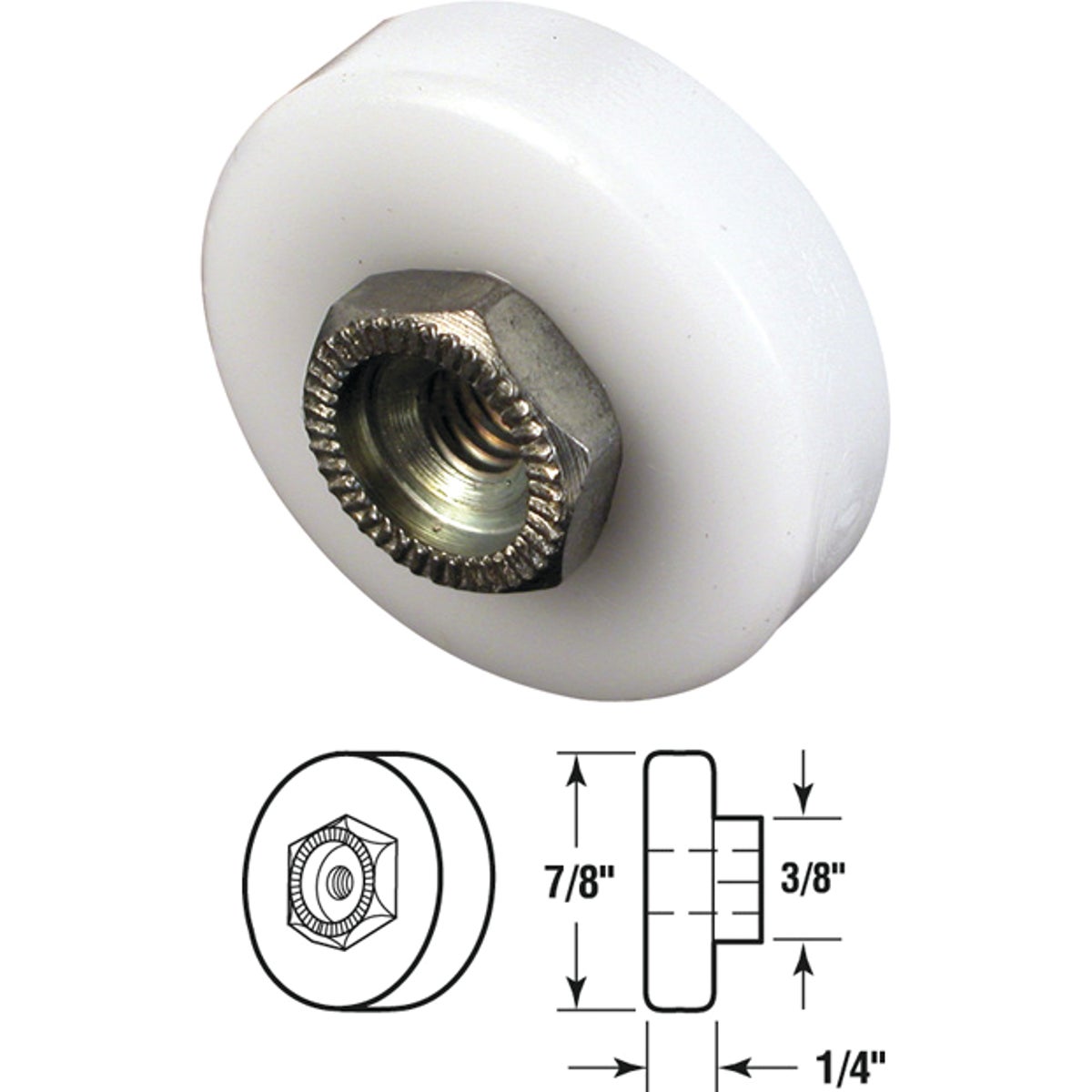

Flat nylon roller with steel center gliding on ball bearings. 7/8" diameter x 3/8" wide. Hardware included. 1 pair per card. No. M 6003: Material: Nylon (Roller) Steel (Center) Size: 7/8 In. D X 3/8 In. W Pkg Qty: 2 Package Type: Card

Keeps tension on window screens. Use on sliding aluminum windows. Mounts into 2 holes drilled 3" on center. No. PL7758: Size: 3-1/8 In. Type: Flat Mount: 2 Holes Drilled 3 In. on Center Pkg Qty: 6 Package Type: Card No. PL14624: Size: 3-1/8 In. Type: Flat Mount: 2 Holes Drilled 3 In. on Center Pkg Qty: 25 Package Type: Tub

Frame component. Use when making new frames only. No drilling required; clips into corner of frame. No. PL7776: Size: 1/4 In. Type: Flat Mount: No Drilling Required Clips On Pkg Qty: 6 Package Type: Card No. PL14630: Size: 1/4 In. Type: Flat Mount: No Drilling Required Clips On Pkg Qty: 25 Package Type: Tub

Frame component. Use when making new frames only. No drilling required; clips into corner of frame. No. PL7776: Size: 1/4 In. Type: Flat Mount: No Drilling Required Clips On Pkg Qty: 6 Package Type: Card No. PL14630: Size: 1/4 In. Type: Flat Mount: No Drilling Required Clips On Pkg Qty: 25 Package Type: Tub

Nickel-plated steel double wing clips used to attach screens and storm windows to window opening also applied to narrow rails to hold adjacent screens in place. Contents: 6 clips with No. 8 x 1/2 flat head sheet metal screws. No. L 5772: Material: Steel Finish: Nickel Pkg Qty: 6 Package Type: Card

Black flush mount handle set. Die-cast construction fits most popular flush lock cut-outs; comes complete with keyed cylinder lock; reversible for left or right hand; complete with 4 different hook lengths. 1 inside latch with deluxe wood pull 1 outside pull 1 keeper installation fasteners 4-hook assortment and 1 locking cylinder with 2 keys. No. C 1032: Finish: Black Handle Material: Wood Lock Type: Keyed Mount Type: Flush Hole Center: 6-5/8 In. Pkg Qty: 1 Package Type: Card

Prime-Line Flush Molded Nylon Panel Clips have a 1/16 In. tip that allows for secure attachment of storm windows or screen panels to storm door frame with screw. No. PL7919: Material: Nylon Color: White Size: 1/16 In. W. x 3/4 In. L. Pkg Qty: 8 Package Type: Bag No. PL14634: Material: Nylon Color: White Size: 1/16 In. W. x 3/4 In. L. Pkg Qty: 25 Package Type: Bag

Prime-Line Foam Screen Spline

Prime-Line Foam Screen Spline

Foam screen spline compresses for a tight fit is easy-to-install and expands to hold screen cloth firmly. Can be used as a replacement for metal spline. Works well on those in-between sizes. 500' reel in black. See sublist for size. No. P8121: Diameter: 0.120 In. Length: 500 Ft. Color: Black Material: Foam Type: Spline Pkg Qty: 1 Package Type: Spool No. P8123: Diameter: 0.145 In. Length: 500 Ft. Color: Black Material: Foam Type: Foam Spline Pkg Qty: 1 Package Type: Spool No. P8125: Diameter:...

Foam screen spline compresses for a tight fit is easy-to-install and expands to hold screen cloth firmly. Can be used as a replacement for metal spline. Works well on those in-between sizes. 500' reel in black. See sublist for size. No. P8131: Diameter: 0.225 In. Length: 500 Ft. Color: Black Material: Foam Type: Foam Spline Pkg Qty: 1 Package Type: Spool No. P8135: Diameter: 0.270 In. Length: 500 Ft. Color: Black Material: Foam Type: Foam Spline Pkg Qty: 1 Package Type: Spool

Prime-Line Folding Crank Handle

Prime-Line Frameless Shower Door Bottom Seal

Garage door roller is constructed from steel. It comes factory lubricated with a steel inner race. This style roller is as a replacement for most garage door rollers. No. GD 52112: Roller Diameter: 1-5/16 In. Stem Length: 2-7/8 In. Shaft Diameter: 5/16 In. Base Material: Steel Material: Steel Shaft Material: Steel Pkg Qty: 2 Package Type: Card

Rollers mount at the front of the drawer opening and help center the drawer. Left and right. Manufactured of white nylon and steel. No. R 7147: Bracket Material: Steel Material: White nylon Pkg Qty: 1 Package Type: Card

Bottom lifting bracket is constructed from heavy duty 13 gauge galvanized steel. It features a steel cable pin and accepts a standard 7/16 in. dia. roller stem. Used on most wooden garage doors. No. GD 52197: Length: 2-5/8 In. Width: 5-11/16 In. Material: Steel Finish: Zinc Plated Pkg Qty: 2 Package Type: Card

Galvanized carbon steel aircraft cables are used on extension spring doors. 1/8 in. replaces most wood door cables 3/32 in. replaces most fiberglass and aluminum door cables. Includes a looped finished end. No. GD 52100: Diameter: 1/8 In. Length: 144 In. Material: Carbon Steel Finish: Galvanized Pkg Qty: 2 Package Type: Card
